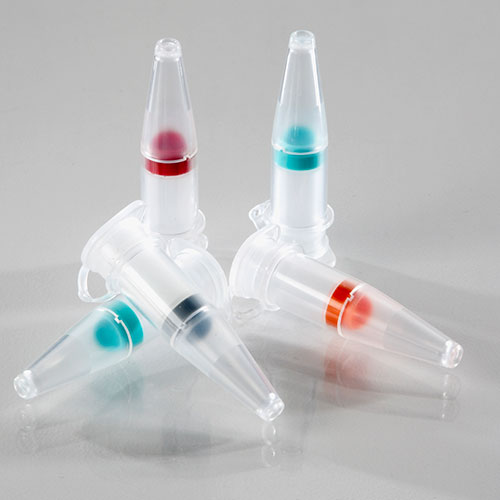

Filtry wirówkowe Nanosep™
Proste, niezawodne zagęszczanie i odsalanie próbek o objętości od 50 do 500 μl.
Nanosep™ centrifugal filters, a Pall Life Sciences product, enables rapid processing of 50 to 500 μl samples with typical recoveries > 90%

Rapidly concentrates 50-500 μL sample volumes to 15 μL
Achieve 50X concentration and > 90% recovery in just minutes
Available with low proteinbinding Omega™ and Bio-Inert™
A wide range of MWCOs, color-coded for easy identification
Constructed of low-binding polypropylene
Ultrasonically welded seals prevent bypass or seal failure
Fits standard centrifuge rotors that accept 1.5 mL tubes
Probówki wirówkowe Nanosep™
Materials of construction
Sample Reservoir, Membrane Support Base and Filtrate Receiver: Polypropylene Filter Media: Omega™ (modified polyethersulfone) ultrafiltration membrane Nanosep MF Devices Sample Reservoir, Membrane Support Base and Filtrate Receiver: Polypropylene Filter Media: wwPTFE (hydrophilic Polytetrafluoroethylene) and Bio-Inert™ (modified nylon) membranes

Effective filtration area
0.28 cm²

Dimensions
Length (full assembly with cap): 4.5 cm (1.8 in.)

Operating temperature range
0 – 40°C (32 – 104°F)

Capacities
Maximum Sample Volume: 500 μL Final Concentrate Volume: 15 μL Filtrate Receiver Volume: 500 μL Hold-up Volume (membrane/support): < 5 μL

pH range
1 – 14

Maximum centrifugal force
14,000 x g

Centrifuge
Fits centrifuges that accept 1.5 mL tubes

Sanitization
Non-sterile. May be sanitized by filtering 70% ethanol through the device before use.
Nr kat. Opis produktu Efekt. pow. filtracji Membrana
ODPTFE04C34 Nanosep MF centrifugal devices with wwPTFE membrane 0,45 um clear (100/pkg) 0,3 cm2 wwPTFE
OD010C35 Nanosep centrifugal devices with Omega membrane 10K blue (500/pkg) 0,3 cm2 Omega modified polyethersulfone
ODM45C33 Nanosep MF centrifugal devices with Bio-Inert membrane 0,45 um wildberry (24/pkg) 0,3 cm2 BioInert modified nylon
OD100C33 Nanosep centrifugal devices with Omega membrane 100K clear (24/pkg) 0,3 cm2 Omega modified polyethersulfone
OD003C34 Nanosep centrifugal devices with Omega membrane 3K gray (100/pkg) 0,3 cm2 Omega modified polyethersulfone
OD300C33 Nanosep centrifugal devices with Omega membrane 300K orange (24/pkg) 0,3 cm2 Omega modified polyethersulfone
OD003C35 Nanosep centrifugal devices with Omega membrane 3K gray (500/pkg) 0,3 cm2 Omega modified polyethersulfone
OD010C34 Nanosep centrifugal devices with Omega membrane 10K blue (100/pkg) 0,3 cm2 Omega modified polyethersulfone
ODM02C35 Nanosep MF centrifugal devices with Bio-Inert membrane 0,2 um aqua (500/pkg) 0,3 cm2 BioInert modified nylon
ODNABC34 NAB Nanosep device 100/pk 0,3 cm2 Glass Fiber
ODM45C35 Nanosep MF centrifugal devices with Bio-Inert membrane 0,45 um wildberry (500/pkg) 0,3 cm2 BioInert modified nylon
OD030C33 Nanosep centrifugal devices with Omega membrane 30K red (24/pkg) 0,3 cm2 Omega modified polyethersulfone
OD300C35 Nanosep centrifugal devices with Omega membrane 300K orange (500/pkg) 0,3 cm2 Omega modified polyethersulfone
OD100C35 Nanosep centrifugal devices with Omega membrane 100K clear (500/pkg) 0,3 cm2 Omega modified polyethersulfone
OD010C33 Nanosep centrifugal devices with Omega membrane 10K blue (24/pkg) 0,3 cm2 Omega modified polyethersulfone
ODPTFE04C35 Nanosep MF centrifugal devices with wwPTFE membrane 0,45 um clear (500/pkg) 0,3 cm2 wwPTFE
OD003C33 Nanosep centrifugal devices with Omega membrane 3K gray (24/pkg) 0,3 cm2 Omega modified polyethersulfone
OD030C35 Nanosep centrifugal devices with Omega membrane 30K red (500/pkg) 0,3 cm2 Omega modified polyethersulfone
ODPTFE02C34 Nanosep MF centrifugal devices with wwPTFE membrane 0,2 um clear (100/pkg) 0,3 cm2 wwPTFE
OD030C34 Nanosep centrifugal devices with Omega membrane 30K red (100/pkg) 0,3 cm2 Omega modified polyethersulfone
ODNABC33 NAB Nanosep device 24/pk 0,3 cm2 Glass Fiber
ODM02C33 Nanosep MF centrifugal devices with Bio-Inert membrane 0,2 um aqua (24/pkg) 0,3 cm2 BioInert modified nylon
ODPTFE02C35 Nanosep MF centrifugal devices with wwPTFE membrane 0,2 um clear (500/pkg) 0,3 cm2 wwPTFE
OD300C34 Nanosep centrifugal devices with Omega membrane 300K orange (100/pkg) 0,3 cm2 Omega modified polyethersulfone
ODM02C34 Nanosep MF centrifugal devices with Bio-Inert membrane 0,2 um aqua (100/pkg) 0,3 cm2 BioInert modified nylon
ODM45C34 Nanosep MF centrifugal devices with Bio-Inert membrane 0,45 um wildberry (100/pkg) 0,3 cm2 BioInert modified nylon
FD001X34 Nanosep Filtrate Vial 100/PK
OD100C34 Nanosep centrifugal devices with Omega membrane 100K clear (100/pkg) 0,3 cm2 Omega modified polyethersulfone
ODPTFE04C34;Nanosep MF centrifugal devices with wwPTFE membrane 0,45 um  clear (100/pkg);0,3 cm2;wwPTFE
OD010C35;Nanosep centrifugal devices with Omega membrane 10K  blue (500/pkg);0,3 cm2;Omega modified polyethersulfone
ODM45C33;Nanosep MF centrifugal devices with Bio-Inert membrane 0,45 um  wildberry (24/pkg);0,3 cm2;BioInert modified nylon
OD100C33;Nanosep centrifugal devices with Omega membrane 100K  clear (24/pkg);0,3 cm2;Omega modified polyethersulfone
OD003C34;Nanosep centrifugal devices with Omega membrane 3K  gray (100/pkg);0,3 cm2;Omega modified polyethersulfone
OD300C33;Nanosep centrifugal devices with Omega membrane 300K  orange (24/pkg);0,3 cm2;Omega modified polyethersulfone
OD003C35;Nanosep centrifugal devices with Omega membrane 3K  gray (500/pkg);0,3 cm2;Omega modified polyethersulfone
OD010C34;Nanosep centrifugal devices with Omega membrane 10K  blue (100/pkg);0,3 cm2;Omega modified polyethersulfone
ODM02C35;Nanosep MF centrifugal devices with Bio-Inert membrane 0,2 um  aqua (500/pkg);0,3 cm2;BioInert modified nylon
ODNABC34;NAB Nanosep device 100/pk;0,3 cm2;Glass Fiber
ODM45C35;Nanosep MF centrifugal devices with Bio-Inert membrane 0,45 um  wildberry (500/pkg);0,3 cm2;BioInert modified nylon
OD030C33;Nanosep centrifugal devices with Omega membrane 30K  red (24/pkg);0,3 cm2;Omega modified polyethersulfone
OD300C35;Nanosep centrifugal devices with Omega membrane 300K  orange (500/pkg);0,3 cm2;Omega modified polyethersulfone
OD100C35;Nanosep centrifugal devices with Omega membrane 100K  clear (500/pkg);0,3 cm2;Omega modified polyethersulfone
OD010C33;Nanosep centrifugal devices with Omega membrane 10K  blue (24/pkg);0,3 cm2;Omega modified polyethersulfone
ODPTFE04C35;Nanosep MF centrifugal devices with wwPTFE membrane 0,45 um  clear (500/pkg);0,3 cm2;wwPTFE
OD003C33;Nanosep centrifugal devices with Omega membrane 3K  gray (24/pkg);0,3 cm2;Omega modified polyethersulfone
OD030C35;Nanosep centrifugal devices with Omega membrane 30K  red (500/pkg);0,3 cm2;Omega modified polyethersulfone
ODPTFE02C34;Nanosep MF centrifugal devices with wwPTFE membrane 0,2 um  clear (100/pkg);0,3 cm2;wwPTFE
OD030C34;Nanosep centrifugal devices with Omega membrane 30K  red (100/pkg);0,3 cm2;Omega modified polyethersulfone
ODNABC33;NAB Nanosep device 24/pk;0,3 cm2;Glass Fiber
ODM02C33;Nanosep MF centrifugal devices with Bio-Inert membrane 0,2 um  aqua (24/pkg);0,3 cm2;BioInert modified nylon
ODPTFE02C35;Nanosep MF centrifugal devices with wwPTFE membrane 0,2 um  clear (500/pkg);0,3 cm2;wwPTFE
OD300C34;Nanosep centrifugal devices with Omega membrane 300K  orange (100/pkg);0,3 cm2;Omega modified polyethersulfone
ODM02C34;Nanosep MF centrifugal devices with Bio-Inert membrane 0,2 um  aqua (100/pkg);0,3 cm2;BioInert modified nylon
ODM45C34;Nanosep MF centrifugal devices with Bio-Inert membrane 0,45 um  wildberry (100/pkg);0,3 cm2;BioInert modified nylon
FD001X34;Nanosep Filtrate Vial 100/PK;
OD100C34;Nanosep centrifugal devices with Omega membrane 100K  clear (100/pkg);0,3 cm2;Omega modified polyethersulfone
