Membrany z kopolimeru akrylowego Versapor
Do wstępnej filtracji trudnych do sączenia roztworów i surowicy.

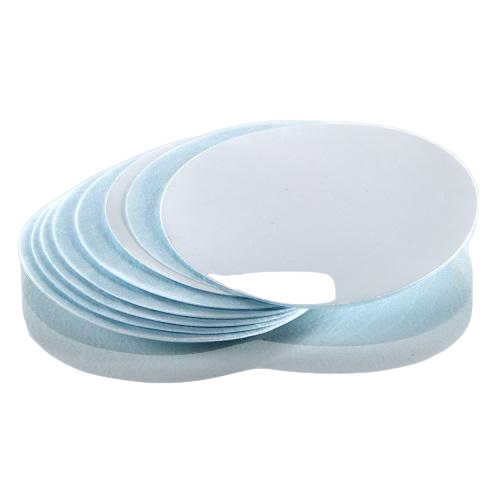

Versapor™ acrylic copolymer membrane disc filters, a Pall Life Sciences product, are designed for prefiltration of difficult-to-filter solutions and serum.

Reduces clogging of final filters. Can be used upstream of a sterilizing filter for viscous solutions.
Strong and flexible while both wet or dry.
Excellent throughput with high liquid flow rates at low differential pressures.
Membrany z kopolimeru akrylowego Versapor
Filter Media
Hydrophilic acrylic copolymer on a non-woven support

Pore Size
0.45, 0.8, 1.2, 3, and 5 μm

Diameter
25 - 293 mm

Typical Thickness
94 μm (3.7 mils)

Typical Water Flow Rate
mL/min/cm2 at 0.7 bar (70 kPa, 10 psi)
0.45 μm: 75
0.8 μm: 142
1.2 μm: 315
3 μm: 518
5 μm: 778

Maximum Operating Temperature - Water
88°C (190°F)

Minimum Bubble Point - Water
0.45 μm: 1.1 bar (110 kPa, 16 psi)
0.8 μm: 0.6 bar (60 kPa, 8 psi)
1.2 μm: 0.4 bar (40 kPa, 6 psi)
3 μm: 0.2 bar (20 kPa, 3 psi)
5 μm: 0.1 bar (10 kPa, 2 psi)

Biological Safety
Passes United States Pharmacopeia (USP) Biological Reactivity Test, In Vivo <88>

Sterilization
Provided non-sterile. If desired, sterilize by gamma irradiation or sanitize with 70% ethanol

Applications
Designed to be used in applications requiring excellent retention properties combined with tensile strengths in excess of 200 bar (20,000 kPa, 3000 psi).
Nr kat. Opis produktu Pory Średnica Il./opak.
66331 Versapor acrylic copolymer membrane filters, 0,8 um, 37 mm (100/pkg) 0,8 um 37 mm 100
66397 Versapor acrylic copolymer membrane filters, 1,2 um, 293 mm (25/pkg) 1,2 um 293 mm 25
60221 Versapor acrylic copolymer membrane filters, 3 um, 25 mm (100/pkg) 3,0 um 37 mm 100
66386 Versapor acrylic copolymer membrane filters, 3 um, 25 mm (100/pkg) 3,0 um 25 mm 100
66408 Versapor acrylic copolymer membrane filters, 0,45 um, 47 mm (100/pkg) 0,45 um 47 mm 100
60178 Versapor acrylic copolymer membrane filters, 5 um, 47 mm (100/pkg) 5,0 um 47 mm 100
66387 Versapor acrylic copolymer membrane filters, 3 um, 47 mm (100/pkg) 3,0 um 47 mm 100
66389 Versapor acrylic copolymer membrane filters, 3 um, 142 mm (25/pkg) 3,0 um 142 mm 25
66393 Versapor acrylic copolymer membrane filters, 1,2 um, 25 mm (100/pkg) 1,2 um 25 mm 100
66394 Versapor acrylic copolymer membrane filters, 1,2 um, 47 mm (100/pkg) 1,2 um 47 mm 100
66411 Versapor acrylic copolymer membrane filters, 0,45 um, 293 mm (25/pkg) 0,45 um 293 mm 25
60157 Versapor acrylic copolymer membrane filters, 5 um, 47 mm, without wetting agent (100/pkg) 5,0 um 47 mm 100
66332 Versapor acrylic copolymer membrane filters, 5 um, 37 mm (100/pkg) 5,0 um 37 mm 100
60039 Versapor acrylic copolymer membrane filters, 3 um (nominal thickness 152 um), 25 mm (25/pkg) 3,0 um 25 mm 25
66400 Versapor acrylic copolymer membrane filters, 0,8 um, 25 mm (100/pkg) 0,8 um 25 mm 100
66396 Versapor acrylic copolymer membrane filters, 1,2 um, 142 mm (25/pkg) 1,2 um 142 mm 25
66410 Versapor acrylic copolymer membrane filters, 0,45 um, 142 mm (25/pkg) 0,45 um 142 mm 25
66401 Versapor acrylic copolymer membrane filters, 0,8 um, 47 mm (100/pkg) 0,8 um 47 mm 100
