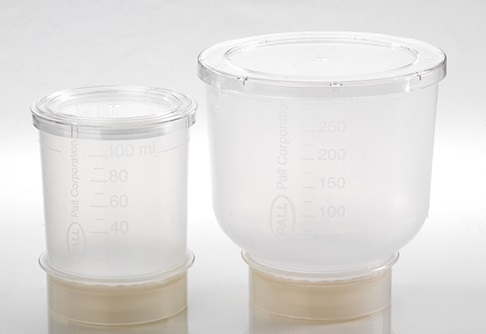

MicroFunnel filter funnels

Opis produktu

Microfunnel™ filter funnels, a Pall Life Sciences product, are convenient, ready-to-use disposable filter funnels for quality control analysis of aqueous fluids used in pharmaceutical production, water, and food and beverage applications.

Product performs as sample container and filter funnel all in one. No need to transfer sample from cup to disposable funnel and risk introducing contamination.
MicroFunnel Plus AP unit allows aseptic collection of the sample through the lid sample port. No need to remove lid.
MicroFunnel Plus products with Supor™ membrane are designed to allow sampling of hot water up to 90°C.
Vented lid snaps to a liquid-tight seal and allows filtration without having to open the funnel and risk introducing contamination.
Vent filter ensures no airborne contamination is drawn into the funnel during filtration.
Attaches directly to a standard laboratory manifold or use with adapter and stopper.
Volume graduations are clearly marked for ease in measuring your sample volume.
Individually bagged and labeled for contamination control and lot traceability.
NEW Packaging* see Specifications for more information.

Specyfikacja

Specifications

Materials of Construction

Filter Media: GN-6 Metricel™ (mixed cellulose esters), Supor™(hydrophilic polyethersulfone), and Metricel™ Black (modified polyethersulfone) membranes

Support Pad: Cellulose

Funnel and Base: Polypropylene

Adhesive Gasket: Urethane

Funnel Cover: Polyethylene with hydrophobic Versapor™ membrane (acrylic copolymer on a non-woven support)

Bag: Polyethylene

Adapter: Polyethylene

Plug: Polyethylene (PN 4807, 4808)

Effective Filtration Area

13.46 cm2

Dimensions

100 mL Funnel

Height: 7.6 cm (3.0 in.) with cover

Diameter: 6.1 cm (2.4 in.) with cover

300 mL Funnel

Height: 8.9 cm (3.5 in.)

Diameter: 8.7 cm (3.4 in.)

Maximum Vacuum

63.5 cm Hg (25 in. Hg) (vacuum use only)

Maximum Sample Collection Temperature

PN 4807, 4808, 4829: Ambient

PN 4809, 4814, 4823, 4843, and 4844: 90°C (194°F)

Gamma-Irradiated

Validated dose 15 - 30 kGy

Applications

Improves the efficiency of monitoring your water system while reducing the introduction of contamination.

Eliminates steps in sample collection and testing that could potentially contaminate your sample.

Gridded 0.45 μm GN-6 Metricel™ membrane is ideal for analysis of ambient water by Membrane Filter (MF) Technique.

MicroFunnel Plus with 0.45 or 0.2 μm Supor™ membrane is designed for sampling hot water (such as that found in hot loop WFI systems).

Performance

How to Use the MicroFunnel Plus Filter Funnel

Sampling Ambient Water

Carefully remove the vented lid and collect the sample.
Securely snap lid in place to prevent sample loss. Transport sample to laboratory for filtration.
Remove membrane vent from base, place funnel directly onto manifold, and filter the sample.
Gently grasp funnel then remove and discard lid.
Release cylinder from base by squeezing the midpoint of the cylinder.
Remove the membrane, plate the filter, and incubate.

Collecting Hot Water Samples

Place funnel into holder with graduations visible through the viewing slot. Carefully remove the vented lid and collect the hot water sample.
With funnel and holder resting on a firm, level surface, securely snap lid in place to prevent sample loss. Remove funnel from holder and transport sample to laboratory for filtration. (Proceed with steps 3-6 for ambient water.)

Informacje do zamówienia

Nr kat.	Opis produktu	Pojemność	Pory	Membrana	Kolor
4817	MicroFunnel with Metricel black PES membrane, 300 ml, 0,45 um, black, gridded, gamma-irradiated, Individually bagged (pack of 20)	300 ml	0,45 um	PES	Black
4819	MicroFunnel with Metricel Black PES membrane, 300 ml, 0,8 um, black, gridded, gamma-irradiated, individually bagged (pack of 20)	300 ml	0,8 um	PES	Black
4800ME	MicroFunnel with ME25 MCE membrane, 100 ml, 0,45 um, white, gridded, gamma-irradiated, individually bagged (pack of 50)	100 ml	0,45 um	MCE	White
4801ME	MicroFunnel with ME25 MCE membrane, 100 ml, 0,45 um, white, gridded, gamma-irradiated, unbagged (pack of 50)	100 ml	0,45 um	MCE	White
4804ME	MicroFunnel with ME25 MCE membrane, 100 ml, 0,45 um, white, gridded, gamma-irradiated, Individually bagged (pack of 200)	100 ml	0,45 um	MCE	White
4815ME	MicroFunnel with ME25 MCE membrane, 300 ml, 0,45 um, white, gridded, gamma-irradiated, individually bagged (pack of 20)	300 ml	0,45 um	MCE	White
4810ME	MicroFunnel with ME25 MCE membrane, 100 ml, 0,45 um, white, gridded, gamma-irradiated, Individually bagged, with Petri dish lid kit (pack of 50)	100 ml	0,45 um	MCE	White
4806	MicroFunnel with Supor PES membrane, 100 ml, 0,2 um, white, plain, gamma-irradiated, individually bagged (pack of 50)	100 ml	0,2 um	PES	White
4852	MicroFunnel with Supor PES membrane, 100 ml, 0,45 um, white, gridded, gamma-irradiated, individually bagged (pack of 50)	100 ml	0,45 um	PES	White
4803	MicroFunnel with Supor PES membrane, 100 ml, 0,2 um, white, gridded, gamma-irradiated, Individually bagged (pack of 50)	100 ml	0,2 um	PES	White
4701	Accessory - MicroFunnel adapters for use with rubber stoppers, autoclavable, (pack of 3)	-	-	-	-
4713	Accessory - MicroFunnel filter funnel for use with Milliflex pump head, autoclavable, (pack of 1)	-	-	-	-
4818	MicroFunnel with Supor PES membrane, 300 ml, 0,2 um, white, gridded, gamma-irradiated, Individually bagged, (pack of 20)	300 ml	0,2 um	PES	White
4863	Accessory - MicroFunnel filter funnel for use with Oasis pump, autoclavable, (pack of 1)	-	-	-	-
4805	MicroFunnel with Metricel black PES membrane, 100 ml, 0,45 um, black, gridded, gamma-irradiated, Individually bagged (pack of 50)	100 ml	0,45 um	PES	Black
4828	MicroFunnel filter funnel with Supor PES membrane, 300 ml, 0,45 um, White, Gridded, Gamma-irradiated, Individually bagged, (pack of 20)	300 ml	0,45 um	PES	White
4896	Accessory - MicroFunnel accessory plugs, gamma-irradiated (pack of 50)	-	-	-	-
