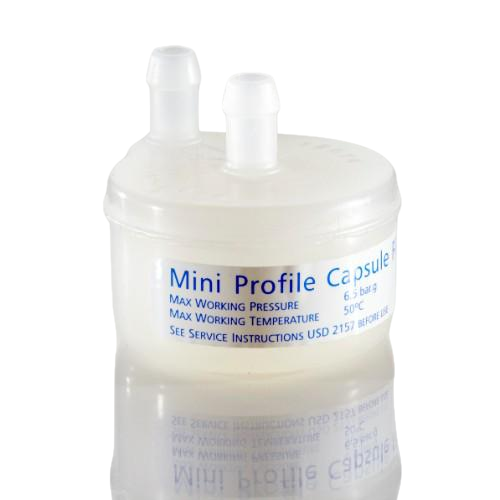

Mini Profile capsules, a Pall Life Sciences product, are high capacity depth filters that offer broad chemical compatibility and are optimized for viscous fluids.
High capacity depth medium is absolute particle rated for reliability.
Filter materials offer broad chemical compatibility.
Optimized for viscous fluids.
Mini Profile II filters have a thick depth structure, providing high capacity for larger solids and gels as well as for fine particles.
Profile Star filters feature high area star-shaped pleated construction. The patented design combines the advantages of thick depth filters with those of traditional high area pleated filters.
Specifications
Materials of Construction
Filter Media, Core/End Caps, and Housing: Polypropylene
13 mm Single Hose Barb Adapter: Acetal
Absolute Removal Ratings (Liquid)
99.98% by modified OSU-F2 Beta test.
Effective Filtration Area
Profile II Filter: 46 cm2 (7.1 in.2)
Profile Star Filter: 90 cm2 (14.5 in.2)
Inlet/Outlet Connections
13 mm (9/16 in.) hose barb
Maximum Operating Temperature and Pressure
(In compatible fluids that do not adversely affect the filter or materials of construction.)
Profile II Filter:
30°C (86°F) at 4.1 bar (410 kPa, 60 psi)
50°C (122°F) at 3.4 bar (340 kPa, 50 psi)
Profile Star Filter:
50°C (122°F) at 5.0 bar (500 kPa, 75 psi)
Sterilization
Provided non-sterile
Can be autoclaved up to 3 times to 125°C (257°F) for 30 minutes
Applications
Designed for small-volume production and scale-up evaluation
Can be used for the clarification of biological products
Optimized for viscous fluids
Excellent for gel removal
