Podajnik membran Sentino
Podajnik filtrów membranowych dla wysokowydajnych laboratoriów mikrobiologicznych.

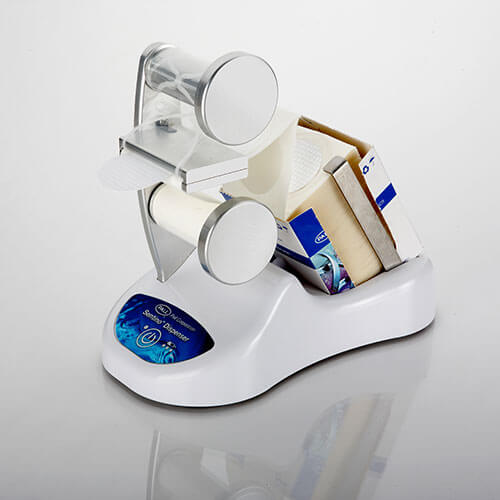

The Sentino™ filter dispenser, a Pall Life Sciences product, is designed to aseptically dispense one disc of membrane at the touch of a button.

Easy to load — Simple loading and unloading of refill pack at any point during use.
No jamming — Guide plates assist loading and keep refill web in alignment during use to avoid jamming of the instrument.
Soft touch keypad — Aseptically dispense a disc of membrane at the touch of a button.
Designed to hold 200 membrane discs — Saves time by eliminating interruptions to reload dispenser.
Compact design — Small footprint frees valuable bench top space and provides flexibility in arranging workspace for optimal efficiency and workflow.
Miniaturized refill pack — Sized to minimize storage space resulting in less packaging material waste.
Portable — Use plugged into main power source or charge battery for use anywhere. Indicator lights let you know when the battery charge is running low.
Easy to clean — Sanitize with standard laboratory disinfectants.
Podajnik membran Sentino

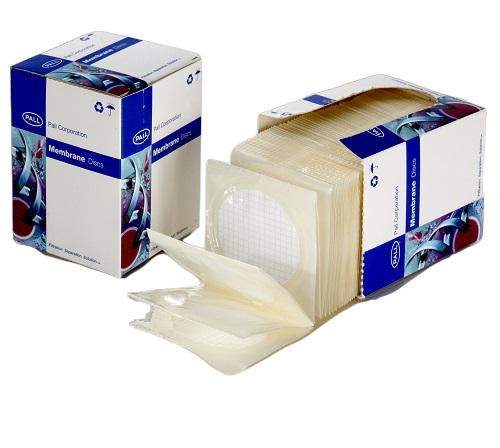

Taśma do podajnika membran Sentino
Materials of Construction
Housing Material: Polycarbonate ABS-blended polymer
Keypad and Label: Polyester
Bottom Plate: Aluminum
Upright: Anodized aluminum
Spools: Anodized aluminum
Guide Plates: Anodized aluminum
Retainer Clips: Stainless steel with anodized aluminum knobs
Box Retainer: Stainless steel
Foot Pads: Rubber

Dimensions
Length: 22.0 cm (8.7 in.)
Width: 12.0 cm (4.7 in.)
Height: 20.0 cm (7.9 in.)
Weight: 0.9 kg (2.0 lbs.)

Temperature Range
Operation: 15-30°C (59-86°F)
Storage: -15-45°C (5-113°F)

Battery
Voltage: 12.0 V
Type: NiMH (nickel metal hydride)

DC Supply
Voltage: 24.0 V
AC/DC Power Transformer
24 VDC 1.6 Amp 100-240 VAC, 47-63 Hz
Input Interface: IEC 320 3-pin socket
Output Interface (Power Entry Plug): 2.5 mm barrel jack
Power Cord
13184: IEC 320 connector and NEMA 5-15P grounded plug, IEC 320 connector and European CEE 7/7 plug, IEC 320 connector and UK BS1363 plug

Applications
Filter dispensers are ideal for high throughput microbiology testing labs looking for more ergonomic, faster ways to handle individual membranes. The Sentino Filter Dispenser is designed to aseptically dispense one disc of membrane at the touch of a button. Use the Sentino Filter Dispenser during

Membrane Filter Technique for:
Drinking and wastewater analysis
Environmental and recreational water monitoring
Personal care product manufacturing
Beverage monitoring
Pharmaceutical and industrial water system monitoring
Pharmaceutical raw materials, intermediates, and final product
Product Product
Grid Line
 Diametric
Filter media
13184 SentinoGlobal membrane Dispenser (1/pkg)
68123 SentinoSupormembrane; 0.2 µm; Dispenser Packs of 200 (1000/pkg) black 47 mm Supor membranepolyethersulfone
68125 SentinoMetricelblack membrane 0.8 µm Dispenser Packs of 200 (1000/pkg) black 47 mm Metricel Black membrane modified polyethersulfone
68121 Sentino GN-6 membrane; 0.45 µm; Dispenser Packs of 200 (1000/pkg) black 47 mm GN4 Metricel membrane mixed cellulose ester
68124 SentinoMetricelblack membrane; 0.45 µm; Dispenser Packs of 200 (1000/pkg) black 47 mm Metricel Black membrane modified polyethersulfone
