Mikropłytki 96-dołkowe AcroPrep Advance do filtracji roztworów wodnych
Płyty do filtracji roztworów wodnych.

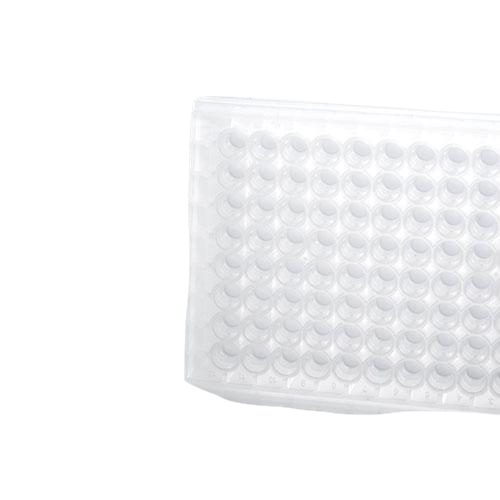

AcroPrep™ Advance 96-well filter plates for aqueous filtration, a Pall Life Sciences product, allow for fast processing with efficient removal of particulates.

New well geometry results in faster, more uniform filtration rates across the plate with reduced hold-up volume
New outlet tip geometry facilitates direct flow of samples into receiver plate without concerns of crosscontamination
Varied membrane and pore size selection offers efficient particulate removal
Manufactured in accordance with SBS guidelines, allowing plates to be run in manual, semi-automated and automated processes
Smooth top surface and textured window allow for easy labeling on the plates, as well as provide easy usage orientation through the A1 corner notch
Mikropłytki 96-dołkowe AcroPrep Advance do filtracji roztworów wodnych
Specifications
Materials of Construction
Filter Media: Supor™(polyethersulfone), glass fiber (borosilicate glass without binder), and PP/PE non-woven (polypropylene/polyethylene) media
Plate Housing: Polyproylene
Lid: Polystyrene

Dimensions
Length: 12.8 cm (5.0 in.)
Width: 8.6 cm (3.4 in.)
Height With Lid: 1.8 cm (0.7 in.) (350 μL only)
Height Without Lid: 350 μL, 1.4 cm (0.6 in.); 1 mL: 3.3 cm (1.3 in.); 2 mL: 4.7 cm (1.9 in.)

Well-Bottom Area
0.25 cm2

Recommended Working Volume
350 μL: < 300 μL 1 mL: < 900 μL 2 mL: < 1.9 mL

Recommended Operating Vacuum
> 25.4 cm Hg (10 in. Hg)

Recommended Centrifugal Force
1,500 x g

Typical Vacuum Filtration Performance
0.2 μm Supor
Processing time (sec): 9
Hold-up volume (μL): 8

0.45 μm Supor
Processing time (sec): 5
Hold-up volume (μL): 6

1.2 μm Supor
Processing time (sec): 2
Hold-up volume (μL): 5

1.0 μm Glass Fiber
Processing time (sec): 2
Hold-up volume (μL): 19

30-40 μm PP/PE
Processing time (sec): 1
Hold-up volume (μL): 4

Applications
General sample prep
Gross fractionation
Cell harvesting
Cell-based assays
Nr kat. Opis produktu Objętość dołka Pory Membrana
8019 AcroPrep Advance 96-well filter plates - 350 ul 0,2 um Supor membrane (10/pkg) 350 ul 0,2 um Supor polyethersulfone
8119 AcroPrep Advance 96-well filter plates for Aqueous Filtration - 1 ml 0,2 um Supor membrane (5/pkg) 1 ml 0,2 um Supor polyethersulfone
8131 AcroPrep Advance 96-well filter plates - 1 ml 1,0 um Glass Fiber (5/pkg) 1 ml 1,0 um glass fiber borosilicate glass without binder
8227 AcroPrep Advance 96-well filter plates - 2 ml 30-40 um PP/PE non-woven media (5/pkg) 2 ml 30-40 um PP PE nonwoven polypropylene polyethylene media
8151 AcroPrep Advance filter plates for Aqueous Filtration - 1 ml 1,0 um Glass Fiber long tip (5/pkg) 1 ml 1,0 um glass fiber borosilicate glass without binder
8127 AcroPrep Advance 96-well filter plates - 1 ml 30-40 um PP/PE non-woven media (5/pkg) 1 ml 30-40 um PP PE nonwoven polypropylene polyethylene media
8027 AcroPrep Advance 96-well filter plates for Aqueous Filtration 350 ul 30-40 um PP/PE non-woven media (10/pkg) 350 ul 30-40 um PP PE nonwoven polypropylene polyethylene media
8231 AcroPrep Advance 96-well filter plates - 2 ml 1,0 um Glass Fiber (5/pkg) 2 ml 1,0 um glass fiber borosilicate glass without binder
8031 AcroPrep Advance 96-well filter plates for Aqueous Filtration - 350 ul 1,0 um Glass Fiber (10/pkg) 350 ul 1,0 um glass fiber borosilicate glass without binder
8019;AcroPrep Advance 96-well filter plates - 350 ul 0,2 um Supor membrane (10/pkg);350 ul;0,2 um;Supor polyethersulfone
8119;AcroPrep Advance 96-well filter plates for Aqueous Filtration - 1 ml 0,2 um Supor membrane (5/pkg);1 ml;0,2 um;Supor polyethersulfone
8131;AcroPrep Advance 96-well filter plates - 1 ml 1,0 um Glass Fiber (5/pkg);1 ml;1,0 um;glass fiber borosilicate glass without binder
8227;AcroPrep Advance 96-well filter plates - 2 ml 30-40 um PP/PE non-woven media (5/pkg);2 ml;30-40 um;PP PE nonwoven polypropylene polyethylene media
8151;AcroPrep Advance filter plates for Aqueous Filtration - 1 ml 1,0 um Glass Fiber long tip (5/pkg);1 ml;1,0 um;glass fiber borosilicate glass without binder
8127;AcroPrep Advance 96-well filter plates - 1 ml 30-40 um PP/PE non-woven media (5/pkg);1 ml;30-40 um;PP PE nonwoven polypropylene polyethylene media
8027;AcroPrep Advance 96-well filter plates for Aqueous Filtration 350 ul 30-40 um PP/PE non-woven media (10/pkg);350 ul;30-40 um;PP PE nonwoven polypropylene polyethylene media
8231;AcroPrep Advance 96-well filter plates - 2 ml 1,0 um Glass Fiber (5/pkg);2 ml;1,0 um;glass fiber borosilicate glass without binder
8031;AcroPrep Advance 96-well filter plates for Aqueous Filtration - 350 ul 1,0 um Glass Fiber (10/pkg);350 ul;1,0 um;glass fiber borosilicate glass without binder
