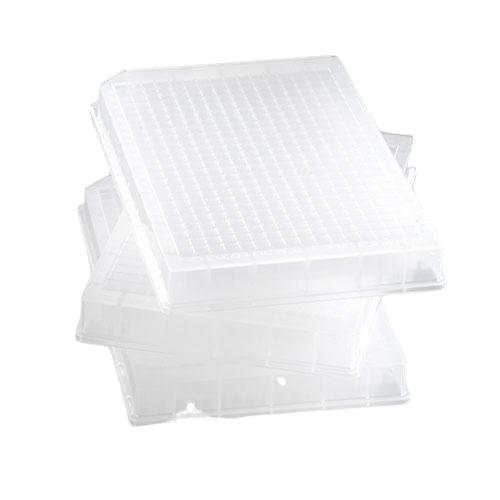

Mikropłytki AcroPrep 384-dołkowe 100 µl
Do stosowania w aplikacjach przygotowywania próbek o dużej objętości i wymagających dużej wydajności.
AcroPrep™ 384-well filter plates, a Pall Life Sciences product, is well suited for use in high volume, high throughput sample prep applications

Plates are constructed from chemically-resistant, biologically-inert polypropylene with a clear polystyrene lid.
Robotic-friendly design has single-piece construction, designed in accordance with the ANSI/SBS X-2004 standards. Plates are stackable with and without lids.
Eliminates crosstalk between wells. Membranes are individually sealed in each well with a proprietary sealing process and each well has a fluid director.
A serialized barcode label allows the use of automated tracking systems and identifies the membrane type.
Available in a variety of membrane configurations to meet the requirements of numerous applications.
Mikropłytki AcroPrep 384-dołkowe 100 µl
Materials of Construction
Filter Media: BioTrace™ NT (nitrocellulose), glass fiber (borosilicate glass), Omega™ (modified PES), and Supor™(PES) membranes
Plate Housing: Polypropylene
Lid: Polystyrene

Dimensions
Height: (with Short Tips): 1.66 cm (0.65 in.) with lid and 1.44 cm (0.56 in.) without lid
Height (with Long Tips): 2.07 cm (0.82 in.) with lid and 1.85 cm (0.73 in.) without lid
Length: 12.78 cm (5.03 in.)
Width: 8.55 cm (3.36 in.)

Well Bottom Area
0.05 cm2

Maximum Well Volume
100 µL

Recommended Maximum Working Volume
80 µL

Recommended Operating Vacuum
25.4 cm Hg (10 in. Hg) or greater

Filtration by Centrifugation
500 - 3,000 x g

Typical Sample Hold-up Volume
< 4 µL per well

Applications
BioTrace™ NT Membrane
Solid phase ELISA
Drug discovery using bound molecules

Glass Fiber Membrane
Lysate clarification
Isolation of RNA, gDNA, and plasmids from culture

Omega™ Membrane
Concentrate, desalt, and purify DNA, RNA and oligonucleotides, and proteins
Nucleic acid purification

Supor™Membrane
Lysate clearance
Bead retention
Multiplex assays
Performance

AcroPrep 384, Long Tip
AcroPrep 384-well Filter Plates, Long TipCan be used for both filtrate- and retentate-based applications. Outlet tips extend beyond the skirt of the plate and pilot into the wells of a receiving plate.

AcroPrep 384, Short Tip
AcroPrep 384-well Filter Plates, Short TipCan be us
Product Product Name Pore size - removal rating Filter media Sample volume
5080 AcroPrep 384-well filter places  100 µL - 100K Omega membrane  long tips  natural (10/pkg) OmegamodifiedPES 80 µl
5081 AcroPrep 384-well filter places  100 µL - 100K Omega membrane  short tips  natural (10/pkg) OmegamodifiedPES 80 µl
5086 AcroPrep 384-well filter places  100 µL - 0.2 µm  BioTrace„˘ NT  short tips  white (10/pkg) 0.2 µm BioTraceNTnitrCellulose 80 µl
5079 AcroPrep 384-well filter places  100 µL - 30K Omega membrane  short tips  natural (10/pkg) OmegamodifiedPES 80 µl
5085 AcroPrep 384-well filter places  100 µL - 1.2 µm Supor membrane  short tips  natural (10/pkg) 1.2 µm Supor PES 80 µl
5072-N AcroPrep 384-well filter places  100 µL - 1.0 µm glass fiber  long tips  natural (10/pkg) 2 µm glass fiber borosilicate glass 80 µl
5078 AcroPrep 384-well filter places  100 µL - 30K Omega membrane  long tips  natural (10/pkg) OmegamodifiedPES 80 µl
5077 AcroPrep 384-well filter places  100 µL - 10K Omega membrane  short tips  natural (10/pkg) OmegamodifiedPES 80 µl
5084 AcroPrep 384-well filter places  100 µL - 1.2 µm Supor membrane  long tips  natural (10/pkg) 1.2 µm Supor PES 80 µl
5073W AcroPrep 384-well filter places  100 µL - 1.0 µm glass fiber  short tips  white (10/pkg) 3 µm glass fiber borosilicate glass 80 µl
5089 AcroPrep 384-well filter plates  100 µl 30/40 ÎĽm PP-PE 10PK PP PE nonwoven polypropylene polyethylene media 80 µl
5076 AcroPrep 384-well filter places  100 µL - 10K Omega membrane  long tips  natural (10/pkg) OmegamodifiedPES 80 µl
