Filtry strzykawkowe Acrodisc z membraną Supor (PES)
Filtry strzykawkowe z membranami z polieterosulfonu (PES) oferujące wysokie prędkości przepływu i niski poziom wiązalności białek.

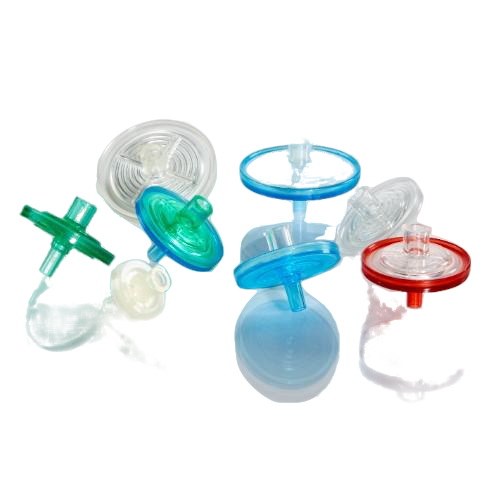

Acrodisc™ syringe filters with Supor™ membrane, a Pall Life Sciences product, deliver high flow rates and low protein binding.

Superior flow rates and higher throughputs than competitive devices.
Low protein binding to minimize sample loss.
Pre-sterilized products are sterilized by gamma irradiation to eliminate potential contamination by EtO residuals.
A range of sizes (13 to 37 mm) accommodates sample volumes from < 10 to 150 mL.
Acrodisc PF and Serum Acrodisc syringe filters feature built-in prefilter for increased throughput of difficult-to-filter liquids.
Reduces mycoplasma with the use of 0.1 μm pore size.
Filtry strzykawkowe Acrodisc z membraną Supor (PES)
Materials of Construction
Filter Media: Supor™ membrane [hydrophilic polyethersulfone (PES)]
Serum Acrodisc Prefilter Media: Binder-free borosilicate glass
Acrodisc Housing:
13 mm: Polypropylene
25 and 32 mm: Modified acrylic
37 mm: Polypropylene
Serum Acrodisc Housing: ABS

Pore Size
0.1, 0.2, 0.45, 0.8, 1.2, and 5 µm

Effective Filtration Area
13 mm: 1.0 cm2
25 mm: 2.8 cm2
32 mm: 5.8 cm2
37 mm: 7.5 cm2

Inlet/Outlet Connections
Female luer lock inlet, male slip luer outlet

Typical Hold-Up Volume
(with air purge)
13 mm: < 28 µL
25 mm: < 70 µL
32 and 37 mm: <100 µL

Maximum Operating Temperature
55°C (131°F)

Maximum Operating Pressure
5.2 bar (520 kPa, 75 psi)

Typical Water Flow Rate
mL/min at 3.1 bar (310 kPa, 45 psi)
0.1 μm, 25 mm: 35
0.1 μm, 32 mm: 100
0.2 μm, 13 mm: 22
0.2 μm, 25 mm: 175
0.2 μm, 32 mm: 490
0.45 μm, 13 mm: 35
0.45 μm, 25 mm: 300
0.45 μm, 32 mm: 700
0.8 μm, 13 mm: 150
0.8 μm, 25 mm: 700
0.8/0.2 μm, 25 mm: 145
0.8/0.2 μm, 32 mm: 440
1.2 μm, 32 mm: 1700
5 μm, 32 mm: 1750
GF/0.2 μm, 37 mm (Serum
Acrodisc Filter): 425

Endotoxin Level
13mm and 25mm: < 0.25 EU/mL using Limulus Amoebocyte Lysate (LAL) test
32mm: < 0.4 EU/mL using Limulus Amoebocyte Lysate (LAL) test

Biological Safety
Passes United States Pharmacopeia (USP) Biological Reactivity Test, In Vivo <88>

Sterilization
Sterilized by gamma irradiation and individually blister packaged. All bulk packages provided non-sterile including PN 4504, 4506, 4508, 4509, 4655, 4653, 4659, 4660, 4661, 4662, 4668, and 4692.

Applications
0.1 and 0.2 μm pore sizes provide sterilization of small volumes of buffers, culture media, and additives.
Acrodisc PF and Serum Acrodisc syringe filters are ideal for clarification/sterilization of viscous or particulate-laden solutions.
Use larger pore size filters for prefiltration and particulate removal.
Nr kat. Opis produktu Obudowa Pory Średnica Opak.
AP-4425 PSF Acrodisc GxF/Supor PES syringe filter 0,45 um, 25 mm (50/pkg, 200/cs) Polypropylene 0,45 um 25 mm 50/pkg 200/cs
4661 Acrodisc Supor PES syringe filter, 1,2/0,45 um, 32 mm (1000/pkg) Modified acrylic 1,2/0,45 um 32 mm 1000/pkg
4662 Acrodisc Supor PES syringe filter, 5,0 um, 32 mm (1000/pkg) Modified acrylic 5,0 um 32 mm 1000/pkg
4509 Acrodisc Supor PES syringe filter, 0,8 um, 25 mm (1000/pkg) Modified acrylic 0,8 um 25 mm 1000/pkg
4655 Acrodisc Supor PES syringe filter, 0,2 um, 32 mm (1000/pkg) Modified acrylic 0,2 um 32 mm 1000/pkg
4692 Acrodisc Supor PES syringe filter, 0,2 um, 13 mm (1000/pkg) Polypropylene 0,2 um 13 mm 1000/pkg
4668 Acrodisc Supor PES syringe filter, 0,1 um, 25 mm (1000/pkg) Modified acrylic 0,1 um 25 mm 1000/pkg
4659 Acrodisc Supor PES syringe filter, 0,8/0,2 um, 32 mm (1000/pkg) Modified acrylic 0,8/0,2 um 32 mm 1000/pkg
4653 Acrodisc Supor PESsyringe filter, 0,45 um, 32 mm (1000/pkg) Modified acrylic 0,45 um 32 mm 1000/pkg
4508 Acrodisc Supor PES syringe filter, 0,45 um, 25 mm (1000/pkg) Modified acrylic 0,45 um 25 mm 1000/pkg
4506 Acrodisc Supor PES syringe filter, 0,2 um, 25 mm (1000/pkg) Modified acrylic 0,2 um 25 mm 1000/pkg
4504 Acrodisc Supor PES syringe filter, 0,8/0,2 um, 25 mm (1000/pkg) Modified acrylic 0,8/0,2 um 25 mm 1000/pkg
AP-4799 PSF Acrodisc GxF/Supor PES syringe filter, 0,2 um, 25 mm (50/pkg, 200/cs) Polypropylene 0,2 um 25 mm 50/pkg 200/cs
AP-4426 PSF Acrodisc GxF/Supor PES syringe filter 0,45 um, 25 mm (1000/pkg) Polypropylene 0,45 um 25 mm 1000/pkg
4660 Acrodisc Supor PES syringe filter, 1,2 um, 32 mm (1000/pkg) Modified acrylic 1,2 um 32 mm 1000/pkg
Brak powiązanych dokumentów
AP-4425;PSF Acrodisc GxF/Supor PES syringe filter 0,45 um, 25 mm (50/pkg, 200/cs);Polypropylene;0,45 um;25 mm;50/pkg 200/cs
4661;Acrodisc Supor PES syringe filter, 1,2/0,45 um, 32 mm (1000/pkg);Modified acrylic;1,2/0,45 um;32 mm;1000/pkg
4662;Acrodisc Supor PES syringe filter, 5 um, 32 mm (1000/pkg);Modified acrylic;5 um;32 mm;1000/pkg
4509;Acrodisc Supor PES syringe filter, 0,8 um, 25 mm (1000/pkg);Modified acrylic;0,8 um;25 mm;1000/pkg
4655;Acrodisc Supor PES syringe filter, 0,2 um, 32 mm (1000/pkg);Modified acrylic;0,2 um;32 mm;1000/pkg
4692;Acrodisc Supor PES syringe filter, 0,2 um, 13 mm (1000/pkg);Polypropylene;0,2 um;13 mm;1000/pkg
4668;Acrodisc Supor PES syringe filter, 0,1 um, 25 mm (1000/pkg);Modified acrylic;0,1 um;25 mm;1000/pkg
4659;Acrodisc Supor PES syringe filter, 0,8/0,2 um, 32 mm (1000/pkg);Modified acrylic;0,8/0,2 um;32 mm;1000/pkg
4653;Acrodisc Supor PESsyringe filter, 0,45 um, 32 mm (1000/pkg);Modified acrylic;0,45 um;32 mm;1000/pkg
4508;Acrodisc Supor PES syringe filter, 0,45 um, 25 mm (1000/pkg);Modified acrylic;0,45 um;25 mm;1000/pkg
4506;Acrodisc Supor PES syringe filter, 0,2 um, 25 mm (1000/pkg);Modified acrylic;0,2 um;25 mm;1000/pkg
4504;Acrodisc Supor PES syringe filter, 0,8/0,2 um, 25 mm (1000/pkg);Modified acrylic;0,8/0,2 um;25 mm;1000/pkg
AP-4799;PSF Acrodisc GxF/Supor PES syringe filter, 0,2 um, 25 mm (50/pkg, 200/cs);Polypropylene;0,2 um;25 mm;50/pkg 200/cs
AP-4426;PSF Acrodisc GxF/Supor PES syringe filter 0,45 um, 25 mm (1000/pkg);Polypropylene;0,45 um;25 mm;1000/pkg
4660;Acrodisc Supor PES syringe filter, 1,2 um, 32 mm (1000/pkg);Modified acrylic;1,2 um;32 mm;1000/pkg
