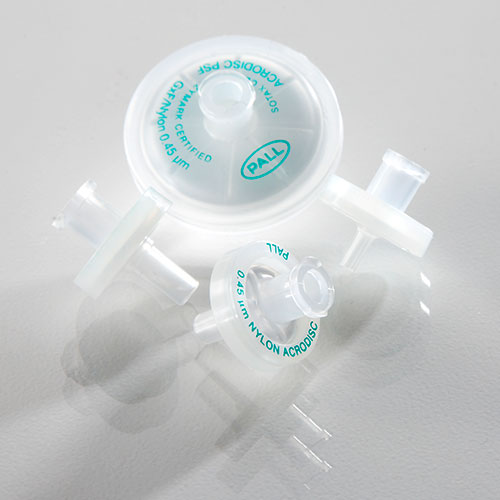

Filtry strzykawkowe Acrodisc z membraną nylonową
Wszechstronny filtr do filtracji próbek wodnych i rozpuszczalników.
Acrodisc™ syringe filters with nylon membrane, a Pall Life Sciences product, provide excellent chemical compatibility with esters, bases, and alcohols. Saves time because no prewetting is required.

Excellent chemical compatibility with esters, bases, and alcohols.
Saves time because no prewetting is required.
Easy filtration of particulate-laden samples with the glass fiber prefilter version.
13 mm device with minispike configuration offers low hold-up and easy filtration into autosampler vials.
Prevents spurious peaks on chromatograms for accurate experimental results. HPLC certified for low levels of UV-absorbing extractables.
Filtry strzykawkowe Acrodisc z membraną nylonową
Materials of Construction
Filter Media: Nylon
Housing: Polypropylene
GxF Prefilter: Borosilicate glass

Pore Size
Nylon Membrane: 0.2 and 0.45 μm
GxF Prefilter: 40 - 1 μm

Effective Filtration Area
4 mm: 0.2 cm2
13 mm: 1.0 cm2
25 mm PSF: 3.9 cm2

Sample Volume
4 mm: < 2 mL
13 mm: < 10 mL
25 mm PSF: < 150 mL

Inlet/Outlet Connections
4, 13, and 25 mm PSF: Female luer lock inlet, male slip luer outlet
13 mm: Available with minispike outlet

Typical Hold-Up Volume (with air purge)
4 mm: < 10 μL
13 mm (minispike): < 14 μL
13 mm (male luer): < 30 μL
25 mm PSF: < 125 μL
25 mm PSF GxF: < 150 μL

Maximum Operating Temperature
55°C (131°F) at 2.1 bar (210 kPa, 30 psi)

Maximum Operating Pressure
4 mm: 5.2 bar (520 kPa, 75 psi)
13 mm: 6.9 bar (690 kPa, 100 psi)
25 mm PSF: 4.1 bar (410 kPa, 60 psi) at 21 - 24°C (70 - 75°F); 2.1 bar (210 kPa, 30 psi) at 55°C (131°F)

Typical Water Flow Rate mL/min at 2.1 bar (210 kPa, 30 psi)
13 mm, 0.2 μm: 10
13 mm, 0.45 μm: 15
25 mm PSF, 0.2 μm: 115 0.45 μm: 245
25 mm PSF GxF/0.45 μm: 215

Applications
The Acrodisc PSF GxF syringe filter provides two to four times the throughput of standard prefilter devices.
Not recommended for acids > 1 N or halogenated solvents.
Nr kat. Opis produktu Membrana Pory Średnica Opak.
4427 Acrodisc Nylon syringe filter, 0,2 um, 13 mm, male slip luer outlet (100/pkg 300/cs) Nylon 0,2 um 13 mm 100/pkg 300/cs
4550 Acrodisc Nylon syringe filter, 0,2 um, 13 mm, minspike outlet (100/pkg 300/cs) Nylon 0,2 um 13 mm 100/pkg 300/cs
4522 Acrodisc Nylon syringe filter, 0,2 um, 25 mm (1000/pkg) Nylon 0,2 um 25 mm 1000/pkg
4502 Acrodisc Nylon syringe filter, 0,45 um, 25 mm (1000/pkg) Nylon 0,45 um 25 mm 1000/pkg
4426 Acrodisc Nylon syringe filter, 0,45 um, 13 mm, male slip luer outlet (100/pkg 300/cs) Nylon 0,45 um 13 mm 100/pkg 300/cs
AP-4549 PSF Acrodisc GxF/Nylon syringe filter, 0,45 um, 25 mm (50/pkg 200/cs) GxF / Nylon 0,45 um 25 mm 50/pkg 200/cs
4546 Acrodisc Nylon syringe filter, 0,45 um, 13 mm, minspike outlet (1000/pkg) Nylon 0,45 um 13 mm 1000/pkg
4541 Acrodisc Nylon syringe filter, 0,45 um, 13 mm, male slip luer outlet (1000/pkg) Nylon 0,45 um 13 mm 1000/pkg
4436 Acrodisc Nylon syringe filter, 0,2 um, 25 mm (50/pkg 200/cs) Nylon 0,2 um 25 mm 50/pkg 200/cs
AP-4438TC PSF Acrodisc Nylon syringe filter, 0,45 um, 25 mm (50/pkg) Nylon 0,45 um 25 mm 50/pkg
AP-4436TC PSF Acrodisc Nylon syringe filter, 0,2 um, 25 mm (50/pkg) Nylon 0,2 um 25 mm 50/pkg
4438TC Acrodisc Nylon syringe filter, 0,45 um, 25 mm (50/pkg) Nylon 0,45 um 25 mm 50/pkg
4551TC Acrodisc Nylon syringe filter, 0,45 um, 13 mm, minspike outlet (100/pkg) Nylon 0,45 um 13 mm 100/pkg
4561 Acrodisc Nylon syringe filter, 0,2 um, 13 mm, minspike outlet (1000/pkg) Nylon 0,2 um 13 mm 1000/pkg
4540 Acrodisc Nylon syringe filter, 0,2 um, 13 mm, male slip luer outlet (1000/pkg) Nylon 0,2 um 13 mm 1000/pkg
4528 Acrodisc GF/Nylon syringe filter, 0,45 um, 25 mm (1000/pkg) GF / Nylon 0,45 um 25 mm 1000/pkg
4438 Acrodisc Nylon syringe filter, 0,45 um, 25 mm (50/pkg 200/cs) Nylon 0,45 um 25 mm 50/pkg 200/cs
AP-4787 PSF Acrodisc GxF/Nylon syringe filter, 0,2 um, 25 mm (50/pkg, 200/cs) GxF / Nylon 0,2 um 25 mm 50/pkg 200/cs
AP-4549TC PSF Acrodisc GxF/Nylon syringe filter, 0,45 um, 25 mm (50/pkg) GxF / Nylon 0,45 um 25 mm 50/pkg
AP-4528 PSF Acrodisc GxF/Nylon syringe filter, 0,45 um, 25 mm (1000/pkg) GxF / Nylon 0,45 um 25 mm 1000/pkg
AP-4522 PSF Acrodisc Nylon syringe filter, 0,2 um, 25 mm (1000/pkg) Nylon 0,2 um 25 mm 1000/pkg
AP-4517 PSF Acrodisc Nylon syringe filter, AutoPack tubes, 0,45 um, 25 mm (25/pkg 200/cs) Nylon 0,45 um 25 mm 25/pkg 200/cs
AP-4788 PSF Acrodisc GxF/Nylon syringe filter, 0,2 um, 25 mm (1000/pkg) GxF / Nylon 0,2 um 25 mm 1000/pkg
AP-4787TC PSF Acrodisc GxF/Nylon syringe filter, 0,2 um, 25 mm (50/pkg) GxF / Nylon 0,2 um 25 mm 50/pkg
AP-4502 PSF Acrodisc Nylon syringe filter, 0,45 um, 25 mm (1000/pkg) Nylon 0,45 um 25 mm 1000/pkg
AP-4438 PSF Acrodisc Nylon syringe filter, 0,45 um, 25 mm (50/pkg 200/cs) Nylon 0,45 um 25 mm 50/pkg 200/cs
AP-4548 PSF Acrodisc GxF/Nylon syringe filter, AutoPack tubes, 0,45 um, 25 mm (25/pkg 200/cs) GxF / Nylon 0,45 um 25 mm 25/pkg 200/cs
AP-4436 PSF Acrodisc Nylon syringe filter, 0,2 um, 25 mm (50/pkg 200/cs) Nylon 0,2 um 25 mm 50/pkg 200/cs
4436TC Acrodisc Nylon syringe filter, 0,2 um, 25 mm (50/pkg) Nylon 0,2 um 25 mm 50/pkg
4551 Acrodisc Nylon syringe filter, 0,45 um, 13 mm, minspike outlet (100/pkg 300/cs) Nylon 0,45 um 13 mm 100/pkg 300/cs
4549 Acrodisc GF/Nylon syringe filter, 0,45 um, 25 mm (50/pkg 200/cs) GF / Nylon 0,45 um 25 mm 50/pkg 200/cs
